1,096,000,000 VNĐ
Que đo Trimode Probe Tektronix P7516
Hãng Sản Xuất: Tektronix USA

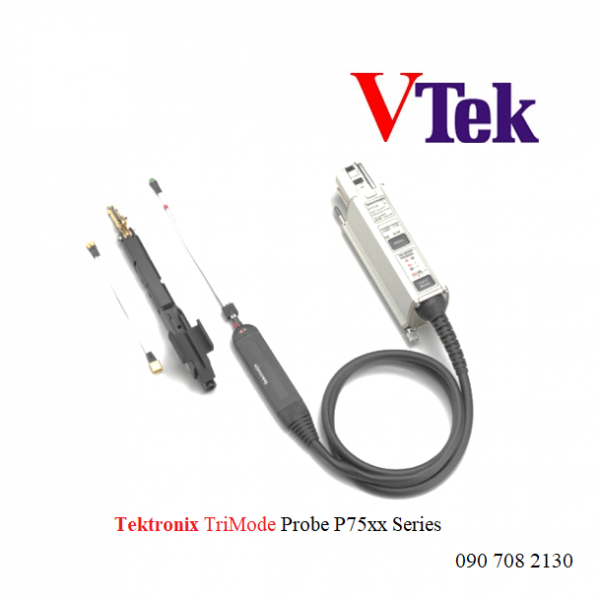

Que đo Trimode Probe Tektronix P7516
THÔNG SỐ KỸ THUẬT
Ứng Dụng
| Model | Điện Áp | Băng thông | Suy hao | Trở kháng | |
| THDP0200 | 500X: ± 1500 V | 200 MHz | ChuẩnTekVPI | 10 MΩ || 2 pF | |
| 50X: ± 150 V | 50X / 500X | ||||
| TMDP0200 | 250X: ± 750 V | 200 MHz | Chuẩn TekVPI | 5 MΩ || 2 pF | |
| 25X: ± 75 V | 25X / 250X | ||||
| THDP0100 | 1000X: ± 6000 V | 100 MHz | Chuẩn TekVPI | 40 MΩ || 2.5 pF | |
| 100X: ± 600 V | 100X / 1000X | ||||
| TDP0500 | 50X: ± 42 V | 500 MHz | ChuẩnTekVPI | 1 MΩ || ≤ 1 pF | |
| 5X: ± 4.2 V | 5X / 50X | ||||
| TDP1000 | 50X: ± 42 V | 1 GHz | Chuẩn TekVPI | 1 MΩ || ≤ 1 pF | |
| 5X: ± 4.2 V | 5X / 50X | ||||
| P6251 | 50X: ± 42 V | 1 GHz | Chuẩn Tekprobe | 1 MΩ || ≤ 1 pF | |
| 5X: ± 4.2 V | 5X / 50X | ||||
| P5200A | 500X: ± 1300 V | 50 MHz | Chuẩn Tekprobe | 10 MΩ || 2 pF | |
| 50X: ± 130 V | Suy hao 50X / 500X | ||||
| P5205A | 500X: ± 1300 V | 100 MHz | ChuẩnTekprobe | 10 MΩ || 2 pF | |
| 50X: ± 130 V | Suy hao 50X / 500X | ||||
| P5202A | 200X: ± 640 V | 100 MHz | Chuẩn Tekprobe | 5 MΩ || 2 pF | |
| 20X: ± 64 V | 20X / 200X | ||||
| P5210A | 1000X: ± 5600 V | 50 MHz | ChuẩnTekprobe | 40 MΩ || 2.5 pF | |
| 100X: ± 560 V | 100X / 1000X | ||||
| TDP3500 | ±15 V (DC + pk AC) | 3.5 GHz | Chuẩn TekVPI | 100 kΩ / ≤0.3 pF | |
| 5X | |||||
| TDP4000 | ±15 V (DC + pk AC) | 4 GHz | Chuẩn TekVPI | 100 kΩ || ≤ 0.3 pF | |
| 5X | |||||
| TDP1500 | ±25 V (DC + pk AC) | 1.5 GHz | Chuẩn TekVPI | 200 kΩ / ≤1 pF | |
| 1X / 10X | |||||
| ADA400A | Bộ khuyếch đại | 1 MHz | Chuẩn Tekprobe | 1 MΩ || ~ 55 pF | |
| 100x, 10x, 1x, 0.1x | |||||
| P6247 | ±25 V (DC + pk AC) | 1 GHz | Chuẩn Tekprobe | 200 kΩ / < 1 pF | |
| 1X, 10X | |||||
| P6248 | ±25 V (DC + pk AC) | 1.5 GHz | Chuẩn Tekprobe | 200 kΩ / <1 pF | |
| 1X, 10X | |||||
| TDP7704 | ±12 V | 4 GHz | Chuẩn FlexChannel | 100kΩ (SIT) / 150kΩ (BRW) || 0.4 pF | |
| 4X / 10X | |||||
| Trimode probe | |||||
| TDP7706 | ±12 V | 6 GHz | Chuẩn FlexChannel | 100kΩ (SIT) / 150kΩ (BRW) || 0.4 pF | |
| 4X / 10X | |||||
| Trimode probe | |||||
| TDP7708 | ±12 V | 8 GHz | Chuẩn FlexChannel | 100kΩ (SIT) / 150kΩ (BRW) || 0.4 pF | |
| 4X / 10X | |||||
| Trimode probe | |||||
| P7504 | ±15 V (DC + pk AC) | 4 GHz | Chuẩn TekConnect | – | |
| 5X / 12.5X | |||||
| trimode probe | |||||
| P7708 | ±12 V | 8 GHz | Chuẩn FlexChannel | 100kΩ (SIT) / 150kΩ (BRW) / 0.4 pF | |
| 4X / 10X | |||||
| Trimode probe | |||||
| P7506 | ±15 V (DC + pk AC) | 6 GHz | Chuẩn TekConnect | 100 kΩ | |
| 5X / 12.5X | |||||
| trimode probe | |||||
| TDP7710 | +/- 12 V | 10 GHz | Chuẩn FlexChannel | 100k Ω (SIT) / 144k Ω (BRW) || 0.4 pF | |
| 4X / 10X | |||||
| Trimode probe | |||||
| P7713 | ±12 V | 13 GHz | Chuẩn TekConnect | 100kΩ (SIT) / 150kΩ (BRW) / 0.4 pF | |
| 4X / 10X | |||||
| Trimode Probe | |||||
| P7513A | ±15 V (DC + pk AC) | >13 GHz | Chuẩn TekConnect | 100 kΩ | |
| 5X / 12.5X | |||||
| trimode probe | |||||
| P7716 | ±12 V | 16 GHz | Chuẩn TekConnect | 100kΩ (SIT) / 150kΩ (BRW) / 0.4 pF | |
| 4X / 10X | |||||
| Trimode Probe | |||||
| P7516 | ±15 V (DC + pk AC) | 16 GHz | Chuẩn TekConnect | – | |
| 5X / 12.5X | |||||
| trimode probe | |||||
| P7625 | ±5 V (DC + pk AC) | 25 GHz | Chuẩn TekConnect | 50 Ω / 225 Ω | |
| 0.25/0.5/1/2/4 (coax) | |||||
| 1.25/2.5/5/10/20 (P76TA) | |||||
| Trimode Probe | |||||
| P7720 | ±12 V | 20 GHz | Chuẩn TekConnect | 100kΩ (SIT) / 150kΩ (BRW) / 0.4 pF | |
| 4X / 10X | |||||
| Trimode Probe | |||||
| P7520A | ±15 V (DC + pk AC) | 20 GHz | Chuẩn TekConnect | – | |
| 5X / 12.5X | |||||
| trimode probe | |||||
| P7633 | ±5 V (DC + pk AC) | 33 GHz | Chuẩn TekConnect | 50 Ω / 225 Ω | |
| 0.25/0.5/1/2/4 (coax) | |||||
| 1.25/2.5/5/10/20 (P76TA) | |||||
| Trimode Probe | |||||
