Máy phân tích phổ Real-time USB Tektronix RSA607A, 9Khz-7.5Ghz

602,000,000 VNĐ

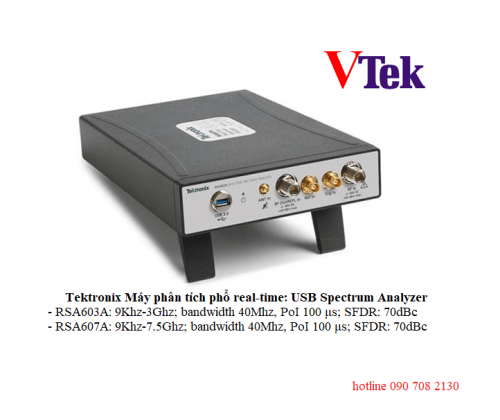

Máy phân tích phổ Real-time USB Tektronix RSA607A

Hãng Sản Xuất: Tektronix USA

Model: RSA607A
Tần số:9Khz – 7.5Ghz
Độ chính xác: ±1 x 10^-6
SFDR: 70dBc
Trở kháng: 50 Ω
Chuẩn : Type-N
Xuất xứ : Mỹ
Giá Trên chưa bao gồm 10%VAT
☎ Vui lòng gọi để có Giá tốt hơn !

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Danh mục: MÁY PHÂN TÍCH PHỔ, TEKTRONIX, USB Real Time Spectrum Analyzer

THÔNG SỐ KỸ THUẬT

Máy phân tích phổ Real-time USB Tektronix RSA607A

Dải tần số: 9Khz – 7.5Ghz

40Mhz real-time signal acquisition bandwidth

100% POI: 100μs

Tốc độ quét full-span: 25Ghz/ giây

Real time DPX Spectrum / Spectrogram

Phần mềm SignalVu-PC^TM

Nhận tín hiệu GPS/GLONASS/Baidou sử dụng cho mapping

Độ chính xác: ±1 x 10^-6

Độ lão hóa: ±1 x 10^-6

Trở kháng vào: 50Ω

VSWR: < 1.2 (10Mhz đến 3Ghz) ; < 1.5 ( 3Ghz-7.5Ghz)

Điện áp DC input max ±40 V

-170 dBm to +40 dBm, 0.1 dB step, (Standard RF input)

Tùy chọn thêm Tracking Generator tần số 7.5Ghz, độ phân giải 100Hz, chuẩn N-Type

Chuẩn ngỏ vào RF: Type N female.

Yêu cầu đối với máy tính cài phần mềm SignalVu-PC : Win-7 trở lên, Intel Core I7; 8G RAM, USB3.0 port

Ứng dụng:

Nghiên cứu phát triển
IoT
Nhà máy Sản xuất
Bảo trì trạm viễn thông
EMI/ EMC complaince testing

Công suất 45w

Kích thước: 75 x 222.3 x 358.6 mm

Trọng lượng 2.79kg

Phụ kiện đi kèm: Cáp USB3.0 kết nối PC, phần mềm, HDSD, dây nguồn

TÙY CHỌN CHỨC NĂNG

License	Description
SVANL-SVPC	AM/FM/PM/Direct Audio Analysis – Node Locked License
SVAFL-SVPC	AM/FM/PM/Direct Audio Analysis – Floating License
SVTNL-SVPC	Settling Time (frequency and phase) measurements – Node Locked License
SVTFL-SVPC	Settling Time (frequency and phase) measurements – Floating License
SVMNL-SVPC	General Purpose Modulation Analysis to work with analyzer of acquisition bandwidth <= 40 MHz or MDO – Node Locked License
SVMFL-SVPC	General Purpose Modulation Analysis to work with analyzer of acquisition bandwidth <= 40 MHz or MDO- Floating License
SVPNL-SVPC	Pulse Analysis to work with analyzer of acquisition bandwidth <= 40 MHz or MDO – Node Locked License
SVPFL-SVPC	Pulse Analysis to work with analyzer of acquisition bandwidth <= 40 MHz or MDO- Floating License
SVONL-SVPC	Flexible OFDM Analysis – Node Locked License
SVOFL-SVPC	Flexible OFDM Analysis – Floating License
SV23NL-SVPC	WLAN 802.11a/b/g/j/p measurement – Node Locked License
SV23FL-SVPC	WLAN 802.11a/b/g/j/p measurement – Floating License
SV24NL-SVPC	WLAN 802.11n measurement (requires SV23) – Node Locked License
SV24FL-SVPC	WLAN 802.11n measurement (requires SV23) – Floating License
SV25NL-SVPC	WLAN 802.11ac measurement to work with analyzer of acquisition bandwidth <= 40 MHz (requires SV23 and SV24) or MDO – Node Locked License
SV25FL-SVPC	WLAN 802.11ac measurement to work with analyzer of acquisition bandwidth <= 40 MHz (requires SV23 and SV24) or MDO – Floating License
SV26NL-SVPC	APCO P25 measurement – Node Locked License
SV26FL-SVPC	APCO P25 measurement – Floating License
SV27NL-SVPC	Bluetooth measurement to work with analyzer of acquisition bandwidth <= 40 MHz or MDO – Node Locked License
SV27FL-SVPC	Bluetooth measurement to work with analyzer of acquisition bandwidth <= 40 MHz or MDO- Floating License
SV31NL-SVPC	Bluetooth 5 measurements (requires SV27) – Node Locked License
SV31FL-SVPC	Bluetooth 5 measurements (requires SV27) – Floating License
MAPNL-SVPC	Mapping – Node Locked License
MAPFL-SVPC	Mapping – Floating License
SV56NL-SVPC	Playback of recorded files – Node Locked License (installed in PC controller only)
SV56FL-SVPC	Playback of recorded files – Floating License (installed in PC controller only)
CONNL-SVPC	SignalVu-PC connection to the 5 or 6 Series MSO, or MDO4000C series mixed-domain oscilloscopes – Node Locked License
CONFL-SVPC	SignalVu-PC connection to the 5 or 6 Series MSO, or MDO4000C series mixed-domain oscilloscopes – Floating License
SV2CNL-SVPC	WLAN 802.11a/b/g/j/p/n/ac and live link to 5 or 6 Series MSO, or MDO4000C to work with analyzer of acquisition bandwidth <= 40 MHz – Node Locked License
SV2CFL-SVPC	WLAN 802.11a/b/g/j/p/n/ac and live link to 5 or 6 Series MSO, or MDO4000C to work with analyzer of acquisition bandwidth <= 40 MHz – Floating License
SV28NL-SVPC	LTE Downlink RF measurement to work with analyzer of acquisition bandwidth <= 40 MHz or MDO – Node Locked License
SV28FL-SVPC	LTE Downlink RF measurement to work with analyzer of acquisition bandwidth <= 40 MHz or MDO – Floating License
SV54NL-SVPC	Signal survey and classification – Node Locked License
SV54FL-SVPC	Signal survey and classification – Floating License
SV60NL-SVPC	Return loss, distance to fault, VSWR, cable loss – Node Locked License (requires Option 04 on RSA500A/600A)
SV60FL-SVPC	Return loss, distance to fault, VSWR, cable loss – Floating License (requires Option 04 on RSA500A/600A)
SV30NL-SVPC	WiGig 802.11ad measurements – Node Locked License (only for offline analysis)
SV30FL-SVPC	WiGig 802.11ad measurements – Floating License (only for offline analysis)
EMCVUNL-SVPC	EMC pre-compliance and troubleshooting (includes EMI CISPR detectors) – Node Locked License
EMCVUFL-SVPC	EMC pre-compliance and troubleshooting (includes EMI CISPR detectors) – Floating License
SVQPNL-SVPC	EMI CISPR detectors – Node Locked License
SVQPFL-SVPC	EMI CISPR detectors – Floating License
EDUFL-SVPC	Education-only version of all modules for SignalVu-PC – Floating License

VUI LÒNG LIÊN HỆ HOTLINE ĐỂ ĐƯỢC TƯ VẤN LỰA CHỌN CÁP, ĂNG TEN, ADAPTER VÀ TRACKING GENERATOR

CÁC MODEL KHÁC

Model	Frequency	Bandwidth	100% POI	SFDR
RSA603A	9 kHz-3.0 GHz	40 MHz	100 μs	70 dBc
RSA607A	9 kHz-7.5 GHz	40 MHz	100 μs	70 dBc

BẢNG SO SÁNH CÁC DÒNG MÁY KHÁC

	Tektronix RSA600	Keysight CXA N9000B	Keysight EXA N9010B	R&S FSL
Frequency Ranges	9 kHz to 3 and 7.5 GHz	9 kHz to 3, 7.5, 13.6, and 26.5 GHz	9 kHz to 3.6, 7, 13.6, 26.5, 32, 44 GHz	9 kHz to 3, 6, 18 GHz
Capture Bandwidth	40 MHz Standard	25 MHz (Opt)	25 MHz	28 MHz (Opt)
Capture Bandwidth	40 MHz Standard	25 MHz (Opt)	40 MHz (Opt)	28 MHz (Opt)
Dynamic Range	-161 dBm to +33 dBm	-163 dBm (DANL @ 1 GHz)	-163 dBm (DANL @ 1 GHz)	-177 dB (with 300 Hz RBW)
(DANL to Max Imput)	-161 dBm to +33 dBm	-163 dBm (DANL @ 1 GHz)	-163 dBm (DANL @ 1 GHz)	-177 dB (with 300 Hz RBW)
Real Time Capabilities	Yes, including DPX Spectrum, S’gram	No, S’gram extra	No, S’gram extra	No
3GPP ACLR Dynamic Range With Noise Correction	-60 dB **	-73 dB	-73 dB	-60 dB
Cable/Antenna Testing: VSWR, DTF, Return Loss Measurements	Yes	No – Scalar Tracking Generator only	None	No – Scalar Tracking Generator only
Analysis Options Highlights	SA, VSA, TG, Pulse, some wireless standards	SA, VSA, TG, Pulse, Wireless Standards	SA, VSA, TG, Pulse, Wireless Standards	SA, VSA, TG, Pulse, Wireless Standards
Preamp	Std	Opt	Opt	Opt
Power Consumption	45 W Maximum + PC	270 W maximum, 20 W standby	350 W maximum, 20 W standby	45 W base unit, 65W with options
Size (LxWxD)	359 mm x 75 mm x 222 mm	177 mm x 426 mm x 368 mm	177 mm x 426 mm x 368 mm	342.3 mm × 158.1 mm × 367.0 mm
Weight (base unit)	2.79 kg	15.4 kg	16 kg	<7 kg
